24mm Max Rope Cable Pulling Equipment 4700×2300×2700mm 4km/H Correspending Speed

Brand Name : GALAXY

Model Number : GL140TP

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 sets per month

Delivery Time : 30 days

Packaging Details : bulk

Maximum intermittent tension : 140KN

Correspending speed : 4km/h

Max rope diameter : 24mm

Total weight : 6800kg

Overall dimension : 4700×2300×2700mm

Type : Hydraulic puller-tensioner

Contact Now

GL140TP Cable Pulling Equipment Hydraulic Puller-tensioner Maximum Intermittent Tension 140KN

Quick Detail

  1. The machine is suitable to string one, two,three or four ropes or bundled conductors.
  2. The machine is completely electronically controlled.
  3. The bull-wheel grooves are made of high resistence interchangeable nylon sectors.

Configuration

  1. Hydraulic power pack to control up to 4 reel stands with hydraulic head or 4 reel winders
  2. Hydraulic oil cooling system
  3. Negative self-acting hydraulic brakes
  4. Grounding connection point
  5. Hydraulic dynamometers with set-point and automatic control of maximum pull
  6. Conntrol instruments for hydraulic system and disel engine
  7. Rigid axles for towing at max speed of 30km/h with mechanical parking brake
  8. Digital meter counters
  9. Hydraulic front stabilizer

Additional Devices

  1. Electronic pull and speed recorder
  2. Lighting system for the trailer

Performance parameter

Puller
Max pull 140KN
Speed at max pull 1.7km/h
Max speed 4km/h
Pull at max speed 60KN
Tensioner
Max tension 140KN
Max speed 4km/h
Engine
Diesel 129kw(173hp)
Cooling system Water
Electrical system 24V
Characteristics
Bull-wheel diameter 1500mm
Max rope diameter 24mm
Max conductor diameter 40mm
Total weight 6800kg
Overall dimension 4700*2200*2300mm
Main configuration
Engine Cummins
Hydraulic pump German Rexroth
Main motor German Rexroth
Speed reducer German Rexroth
Operating handle German Rexroth
Hydraulic meter German

24mm Max Rope Cable Pulling Equipment 4700×2300×2700mm 4km/H Correspending Speed


Product Tags:

transmission line stringing equipment



overhead line stringing equipment


Quality 24mm Max Rope Cable Pulling Equipment 4700×2300×2700mm 4km/H Correspending Speed for sale

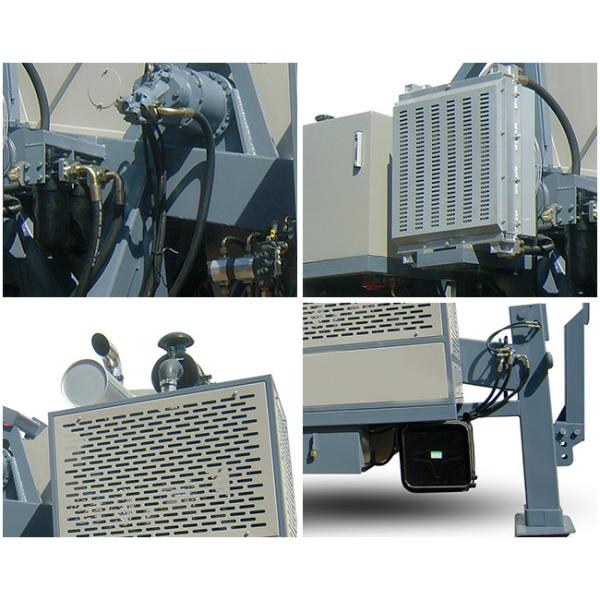

24mm Max Rope Cable Pulling Equipment 4700×2300×2700mm 4km/H Correspending Speed Images
